External integration

The section is intended for developers of cash register companies and integrator companies, providing a detailed guide on the use and integration of the ARIASOFT solution (TACTILION equipment) with the client's cash registers. The equipment is supported for operation with external cash registers running Windows and Linux OS.

General requirements and technical conditions

Operating system of one of the following versions:

OS	Version
Windows (32-bit or 64-bit)	8, 8.1, 10, 11
CentOS	7
Red Hat Enteprise Linux	7, 8, 9
Debian	10, 11
Ubuntu	18.04 LTS, 20.04, 22.04 LTS

Description of API

API of the asapecr.dll library

The ASAPEcr library implements the following functions:

TRPOSX_Init
TRPOSX_Proc
TRPOSX_GetRsp
TRPOSX_Close

When starting the cash register machine (TILL, ECR), it is necessary to initialize the asapecr.dll library. To do this, call the TRPOSX_Init() function. This process includes allocating the necessary resources, starting services, and establishing a connection with the POS terminal.
To perform operations, you should use the TRPOSX_Proc() function, which ensures that transactions are carried out correctly.
After the operation is completed, the results can be obtained using the TRPOSX_GetRsp() function.
When work with the cash register is completed, it is necessary to deinitialize the system by calling the TRPOSX_Close() function. This action releases all involved resources and stops the operation of TRPOSX services.

Description of the TRPOSX_Init function

int TRPOSX_Init(const char * path_to_cfg);

Example of using the function in code:

    char TRPOSX_cfg[] = "c:/trposx/trposx.cfg";

    // initialization TRPOSX_Init
    TRPOSX_Init(TRPOSX_cfg);


Parameter:

path_to_cfg — name of the configuration file.

Initialization of the internal state of the asapecr.dll library includes the preparation of all necessary functions for interaction with the user. During the initialization process, resources are allocated, TRPOSX services are launched, and a connection with the POS terminal is established. This process must be performed once when the cash register machine is launched.

Return values:

Error code	Description
0	No errors
1	Initialization failed

Description of the TRPOSX_Proc function

int TRPOSX_Proc(const char * in_params, int * len_out_params, int * len_receipt);

Example of using the function in code:

    char in_params[] = "MessageID=PUR\nECRnumber=01\nECRReceiptNumber=0000000001\nTransactionAmount=000000000100\n";
    int len_out_params;
    int len_receipt;

    // filling in input parameters for the Payment operation
    if (0 == TRPOSX_Proc(in_params, &len_out_params, &len_receipt))
    { ...
    }
    else
    {
        // unable to start operation with TRPOSX
    }


Starts the operation according to the data from the input parameters. Called every time to start the operation.

Parameters:

in_params — a pointer to a null-terminated list of input parameters.
len_out_params — the address of the variable where the output data size will be placed.
len_receipt — the address of the variable where the receipt size will be placed.

Return values:

Error code	Description
0	No errors
1	Unsupported operation
-1	Error while executing the operation

The composition of the fields of the input parameter buffer (pointed to by in_params):

Transaction	Buffer fields
1. Sale (PUR)	MessageID, ECRnumber, TransactionAmount, Currency, MerchantNo, Token
2. Refund (REF)	MessageID, ECRnumber, ECRReceiptNumber, TransactionAmount, Currency, MerchantNo, TrxID, Token
3. Void (VOI)	MessageID, ECRnumber, ECRReceiptNumber, TransactionAmount, Currency, MerchantNo, TrxID, Token
4. Reconciliation (STL)	MessageID, ECRnumber
5. Reading Journal (JRN)	MessageID, ECRnumber, ECRReceiptNumber, MerchantNo
6. Print Report (SRV)	MessageID, SRVsubfunction, ECRnumber, ECRReceiptNumber, MerchantNo

For the Cancel operation, the InvoiceNumber field obtained during the Payment operation must be passed to ECRReceiptNumber.
For the Refund operation, the RRN field obtained during the Payment operation must be filled in the TrxID field.
In the Reconciliation of Totals and Print Report operations, the ECRReceiptNumber field is not mandatory.

Buffer device

How it works:

The input parameter buffer is a string containing parameters that are passed to a function to perform a specific operation. The parameters are passed as a string, where each parameter is in the key=value format, and the parameters are separated by a newline character \n.

The string format is:

Parameters are passed as a string, where each parameter is written in the format key=value.
Parameters are separated by a newline character \n.
The string is terminated by a null character \0.

Sample content:

MessageID=PUR: Message ID indicating the transaction type (e.g. purchase).
ECRnumber=01: Cash register number.
ECRReceiptNumber=0000000001: Receipt number.
TransactionAmount=000000000100: Transaction amount in minimum currency units (e.g. kopecks for rubles).

Usage in the function:

TRPOSX_Proc takes this buffer as an input parameter.
len_out_params and len_receipt are pointers to variables into which the function will write the output data and receipt sizes respectively.
Passing data: The in_params buffer is passed to the TRPOSX_Proc function, which processes the input parameters and performs the operation.
Processing: The function parses the string, extracts the parameters and uses them to perform the operation.
Result: If the operation is successful, the function returns 0 and the output data and receipt sizes are written to len_out_params and len_receipt.

Field description:

Field	Description
MessageID	Operation
ECRnumber	Cash register identifier
ECRReceiptNumber	Transaction identifier (receipt number used in the Cancel operation)
TransactionAmount	Operation amount
Currency	Currency code
SRVsubfunction	Report number
InvoiceNumber	Terminal operation receipt number
TrxID	RRN, transaction identifier on the financial host side
MerchantNo	Merchant identifier for which operations will be carried out
TRN	Unique transaction number on the external device side (on the cash register side). Filled in by the cash register and subsequently controlled by the cash register to obtain information on the JRN operation in the ECRReceiptNumber field)
Token	Transaction token for operation control on the backend/processing side. In other words, this is a transaction identifier received from some third-party processing, which is needed for further tracking of this transaction

The TrxID field is used in the request for the Return operation.
In the Reconciliation of Totals and Print Report operations, the ECRReceiptNumber field is not mandatory, but is used in the Cancel operation to transfer the receipt number of the original transaction, which was received in the response in the InvoiceNumber field.
The ECRReceiptNumber field is used in the Cancel operation to transfer the receipt number of the original transaction, which was received in the response in the InvoiceNumber field.
For Return, you must fill in the RRN field received during Payment in the TrxID field.

Field	Description
MessageID	Operation
ECRnumber	Cash register identifier
ECRReceiptNumber	Transaction identifier
TransactionAmount	Operation amount
Currency	Currency code
SRVsubfunction	Report number
InvoiceNumber	Terminal operation receipt number
TrxID	Unique transaction identifier (RRN)
MerchantNo	Merchant identifier for which operations will be carried out
Token	The unique identifier of the operation (this field is generated by the cashier and is used later to obtain information about the operation in the JRN operation in the ECRReceiptNumber field)

MessageID values for operations:

Operation	MessageID
Payment	PUR
Return	REF
Cancel	VOI
Reconcile	STL
Read Journal	JRN
Print Response	SRV

SRVsubfunction values:

Report type	SRVsubfunction	Corresponding values in decimal notation
Brief sorted by date	0x0F	15
Detailed sorted by issuer	0x0E	14
Detailed sorted by date	0x0D	13

Return parameters:

Not all parameters listed below may be returned after the operation is performed, as not all are required for this.

Parameter	Description
Approve	Returns 'Y' if the operation is completed, 'N' if not
ResponseCode	Error code for the operation on the device (0 - no errors, if not 0, the remaining fields may not be empty!)
TransactionAmount	Operation amount
Currency	Operation currency code
ProcessingCode	Error code for the operation in processing
Success	An additional response field about the success of the operation, specific only to Android terminals (0 - the operation was not completed). The value should be analyzed only if Approve = "Y' and ResponseCode = 0
ErrorReason	Error processing transaction on the device, typical only for Android terminals (0 - no errors)
MerchantNo	Merchant ID through which the transaction was made
TerminalID	Terminal number
POSEntryMode	Card input method
PAN	Masked PAN of the card
AuthorizationID	Authorization code
RRN	RRN of the transaction
CardHash	Card hash
Date и Time	Original date and time of the transaction on the host
OrigTRN	Unique number of the original transaction from the external device. Used for the Read Journal (JRN) operation, as an identifier of the transaction to be received

There is no interaction on the software side with PAN masking, the card PAN is masked on the server side and usually looks like "************8371".
The TRN field is added to the response from the device (RRN is written there).

Параметр	Описание
Approve	Returns the value 'Y' if the operation is performed, 'N' if not
ResponseCode	The error code for performing the operation on the device (0 - there are no errors, if not 0, then the remaining fields may not be filled in)
TransactionAmount	Transaction amount
Currency	Currency code of the operation
ProcessingCode	The error code of the operation in processing
Success	An additional response field indicating the success of the operation, which is specific only to Android terminals (0 - operation failed). The value needs to be analyzed only with Approve = 'Y' and responseCode = 0
ErrorReason	Transaction processing error on the device, specific only to Android terminals (0 - no errors)
MerchantNo	The merchant's ID for which the transaction took place
InvoiceNumber	The number of the terminal transaction receipt
TerminalID	Terminal number
POSEntryMode	Card input method
PAN	Masked PAN of the card
AuthorizationID	Authorization code
RRN	RRN of the transaction
CardHash	Card hash
Date и Time	Original date and time of the transaction on the host

There is no interaction on the software side with PAN masking, the card PAN is masked on the server side and usually looks like "************8371".
The TRN field is added to the response from the device (RRN is written there).

Description of the TRPOSX_GetRsp function

int TRPOSX_GetRsp(char * out_params, char * receipt);

An example of using a function in the code:

        char *out_params = (char*) malloc(len_out_params);
        char *receipt = (len_receipt ? (char*) malloc(len_receipt) : NULL);
        if ( 0 == TRPOSX_GetRsp(out_params, receipt))
        {
            if (NULL != out_params)
            {
                // processing the operation result
            }
            if (NULL != receipt)
            {
                // receipt data processing
            }
        }
        else
        {
            // can't get the result
        }

        free(out_params);
        free(receipt);

Called after the operation is completed to get the results.

Parameters:

out_params — pointer to the buffer for output parameters. The cash register must allocate memory of size len_out_params for this buffer.
receipt — pointer to the buffer for the receipt. The cash register must allocate memory of size len_receipt for this buffer.

Return values:

Error Code	Description
0	No errors
1	Error while executing function

Description of the TRPOSX_Close function

int TRPOSX_Close(void);

Called when the cash register is finished. This releases resources, stops TRPOSX services, and breaks the connection with the POS terminal.

Error Code	Description
0	No errors
1	Error while executing function

Example of working with the library

#include <stdio>
#include <stddef.h>
#include <malloc.h>

extern int TRPOSX_Init(char * path_to_cfg);
extern int TRPOSX_Proc(char * in_params, int * len_out_params, int * len_receipt);
extern int TRPOSX_GetRsp(char * out_params, char * receipt);
extern int TRPOSX_Close(void);

int main()
{
    char TRPOSX_cfg[] = "c:/trposx/trposx.cfg";

    // initializing TRPOSX_Init
    TRPOSX_Init(TRPOSX_cfg);

    char in_params[] = "MessageID=PUR\nECRnumber=01\nECRReceiptNumber=0000000001\nTransactionAmount=000000000100\n";
    int len_out_params;
    int len_receipt;

    // filling in the input parameters for the purchase operation
    if (0 == TRPOSX_Proc(in_params, &len_out_params, &len_receipt))
    {
        // allocate memory for the output parameters
        char *out_params = (char*) malloc(len_out_params);
        char *receipt = (len_receipt ? (char*) malloc(len_receipt) : NULL);
        if ( 0 == TRPOSX_GetRsp(out_params, receipt))
        {
            if (NULL != out_params)
            {
                // processing the operation result
            }
            if (NULL != receipt)
            {
                // receipt data processing
            }
        }
        else
        {
            // can't get the result
        }

        free(out_params);
        free(receipt);
    }
    else
    {
        // it is not possible to start an operation with TRPOSX
    }

    // closing TRPOSX
    TRPOSX_Close();

    return 0;
}

Description of the Emulator

Cash register emulator

The current version of the emulator is transferred together with the cash library ASAPEcr file pyecr.py.

The folder contains the following files:

pyecr – a test script for running the operation on the pinpad without using 1C. We assume that it will help the engineer connect the Tactilion equipment to the cash register and check the correctness of the settings.
input – a file with data for the test operation (for the pyecr script).
setup – a file with settings generated during registration and setup of the 1C AsapecrAT driver. Manual adjustments for use with pyecr are allowed.

The emulator requires a 32-bit version of python 3. You can use python-3.4.3.

The cash register library requires the Visual Studio 2012 (VC++ 11.0) Update 4 (ver 11.0.61030.0) redistributable component.

The emulator requires the asapecr.dll library and the files required for its operation (setup.txt and certificates). The operation parameters are specified in input.txt.

Examples of responses to operations

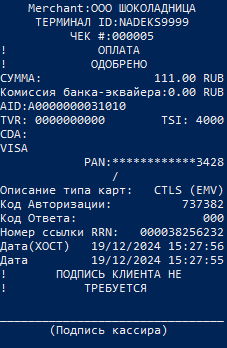

Example of information in a check after performing one of the operations:

Transaction Sale

Input parameters	Result and return parameters
MessageID=PUR ECRnumber=01 ECRReceiptNumber=1000000001 TransactionAmount=11100 Currency=643 Token=1234567890 MerchantNo=NADEKS9999	Approve=Y AuthorizationID=745468 Currency=643 Date=1812 ECRReceiptNumber=1000000001 ECRnumber=01 ErrorReason=3 InvoiceNumber=000002463686 MerchantNo=NADEKS9999 MessageID=PUR PAN=************3428 POSEntryMode=7 ProcessingCode=000 RRN=000002463686 ResponseCode=00 SRVsubfunction= Success=1 TerminalID=NADEKS9999 Time=1809 TransactionAmount=11100 TrxID=000002463686

Transaction Return

Input parameters	Result and return parameters
MessageID=REF ECRnumber=01 ECRReceiptNumber=1000000001 TransactionAmount=11100 Currency=643 Token=1234567890 MerchantNo=NADEKS9999 TrxID=000002463686	Approve=Y AuthorizationID=257489 Currency=643 Date=1812 ECRReceiptNumber=1000000001 ECRnumber=01 ErrorReason=3 InvoiceNumber=1000000001 MerchantNo=NADEKS9999 MessageID=REF PAN=************3428 POSEntryMode=7 ProcessingCode=000 RRN=1000000001 ResponseCode=00 SRVsubfunction= Success=1 TRN=1234567890 TerminalID=NADEKS9999 Time=1820 TransactionAmount=11100 TrxID=1000000001

Transaction Void

Input Parameters	Result and return parameters
MessageID=VOI ECRnumber=01 ECRReceiptNumber=1000000001 TransactionAmount=11100 Currency=643 Token=1234567890 MerchantNo=NADEKS9999 TrxID=000038256232	Approve=Y Currency=643 ECRReceiptNumber=6 ECRnumber=01 ErrorReason=3 InvoiceNumber=000066924028 MerchantNo=NADEKS9999 MessageID=VOI ProcessingCode=000 ResponseCode=00 SRVsubfunction= Success=1 TRN=1234567890 TerminalID=NADEKS9999 TransactionAmount=11100 TrxID=000066924028

Transaction Reconcilation

Input Parameters	Result and return parameters
MessageID=STL ECRnumber=01	Approve=Y ECRnumber=01 ErrorReason=3 MerchantNo=NADEKS9999 MessageID=STL ProcessingCode=000 ResponseCode=00 SRVsubfunction= Success=1

Transaction Read Journal

Input Parameters	Result and return parameters

Transaction Print Report

Input Parameters	Result and return parameters
MessageID=SRV SRVsubfunction=0E ECRnumber=01 ECRReceiptNumber=0000001951	Approve=Y ECRReceiptNumber=0000001951 ECRnumber=01 ErrorReason=3 MessageID=SRV ResponseCode=00 SRVsubfunction=0E Success=1

Current links

Link to the current distribution of the DEMO library, 1C driver and emulator:

ASAPEcr 0.43 1.0.36 - Ссылка

The archive contains library files designed for different operating systems:

File name	OS
asapecr.dll	Windows 32
asapecr_x64.dll	Windows 64
asapecr.so	Linux 64
