Internal integration

This section is intended for developers who want to add AriaPaymentSDK functionality to their applications. It describes the steps for successfully installing, configuring, and using the SDK, as well as providing code samples and recommendations.

Up-to-date files for download

SDK library file (1.0.29.111)

SDK library file (1.0.37.0)

SDK library file (1.0.37.2)

Demo application file (1.0.29.111)

Demo application file (1.0.37.0)

Demo application file (1.0.37.2)

Minimum requirements

Minimum Android version: 5.0
Development environment: Android Studio
Internet connection

Installing and Configuring Graddle/Maven

//project build.gradle
buildscript {
    repositories {
        // If you want to use the fat file system as a repository
        flatDir {
            dirs 'libs'
        }
    }
}

Connecting dependencies to the SDK:

//app build.gradle
dependencies {
   implementation(name: "sdk-pos-release", ext: 'aar')
}

Interaction schemes

General scheme of interaction of processing and certification nodes with SDK

This diagram shows the transaction processing process using the ARIASOFT SDK and various verification systems.

Bank area:

In the center is a secure internal processing network, which includes the acquirer/processing host and the AriaSoft.HOST system with the "final attestation" module for the ARIASOFT SDK.
Transaction processing goes through the acquirer/processing host and AriaSoft.HOST.
Devices are attested through the existing bank input Gate.

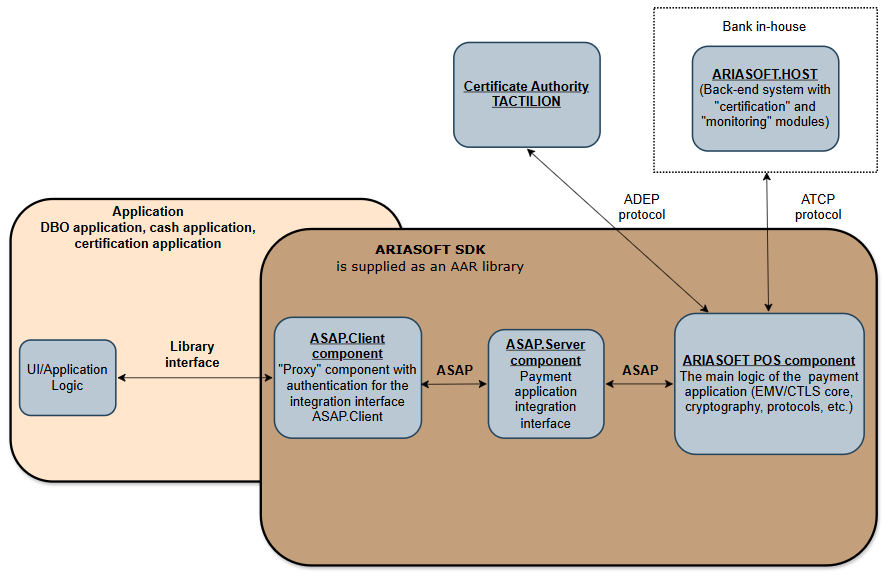

Internal components of the payment SDK

Description of arrows:

ADEP protocol – protocol for interaction with CA NADEKS. Receiving a chain of certificates for interaction with ARIASOFT.HOST. Primary On-Boarding of the Merchant handset is performed.
ATCP protocol – interaction with ARIASOFT.HOST via a registered device (ATCP protocol). Addition of terminal/handset profiles is performed in “packages”.

SDK

The interface to the library is described in the following section.

Initializing the SDK

Getting permissions

The next step is to check what permissions are required for the application and request them from the user.

   public String[] getPermissions() {
        return AbstractTerminal.getInstance().getPermissions();
    }

findViewById(R.id.init_terminal).setOnClickListener(view -> {
setInfoText("Start terminal init. Please wait.", false);

    try {
            TerminalFactory.getInstance().initTerminal(device); // Initialize terminal
    } catch (Exception e) {
setInfoText("Fail terminal init", true); // Error handling
        return;
                }

ArrayList<String> denyPermissions = checkAndCollectDenyPermission(
        AriaPaymentSDK.getInstance().getPermissions() // Get permissions
);
requestDenyPermissions(denyPermissions); // Request missing permissions
});

The required permissions must be specified in the AndroidManifest XML file:

<uses-permission android:name="android.permission.INTERNET" />
<uses-permission android:name="android.permission.ACCESS_NETWORK_STATE" />

INTERNET - internet access
ACCESS_NETWORK_STATE - access to network connection status information

SDK Configuration

Here you create the SDK configuration and configure various parameters such as: request timeout, package name and server addresses.

Obtaining client and private keys

Client and private keys are used to establish a connection between the application and the server. After establishing this connection with the CA, separate keys are downloaded for client and server authentication with the CA.

Client key:

  public void setClientCertificates(String certificates) throws SDKException {
        try {
            ASAPClient.getInstance().setCertChain(certificates); // Installing the certificate chain
        } catch (IncorrectCertChainException | OtherRequestInProgressException e) {
            e.printStackTrace();
            throw new SDKException(e); // Converting exceptions to the SDKException
        }
    }

Private key:

  public void setClientPrivateKey(String privateKey) throws SDKException {
        try {
            ASAPClient.getInstance().setPrivateKey(privateKey); // Installing the private key
        } catch (OtherRequestInProgressException | IncorrectKeyException e) {
            e.printStackTrace();
            throw new SDKException(e); // Converting exceptions to the SDKException
        }
    }

In the new version of the test application, the method implementation is now located inside the AriaPaymentSDK library. These methods must be called strictly after the SDK is successfully initialized, inside the onSuccess() callback:

AriaPaymentSDK.getInstance().init(buildSdkConfig(), new InitCallback() {
    @Override
    public void onSuccess() {
        try {
            // Setting occurs HERE
            AriaPaymentSDK.getInstance().setClientCertificates(correctCertsPem);
            AriaPaymentSDK.getInstance().setClientPrivateKey(correctPrivateKeyPem);
            ...

Configuration

This method configures the SDK using the passed configuration and context parameters:

       SDKConfig sdkConfig = new SDKConfig();
        sdkConfig.setRequestTimeout(2*60*1000); // Setting the timeout (in milliseconds)
        sdkConfig.setPackageName(getPackageName()); // Getting the package name
        sdkConfig.setAriaAddress(new SDKConfig.Address(
                BuildConfig.ARIA_URL, // Establishing the ARYA SOFT.HOST address
                BuildConfig.ARIA_PORT, // Establishing the ARIASOFT.HOST зort
                ("http".equals(BuildConfig.ARIA_PROTOCOL) ? Protocol.HTTP : Protocol.HTTPS), // Choosing the HTTP or HTTPS protocol for connecting to ARIASOFT.HOST
                ("ip".equals(BuildConfig.ARIA_TYPE) ? AddressType.IP : AddressType.DNS) // Selecting an IP or DNS address to connect to ARIASOFT.HOST
        ));

        if (TerminalFactory.getInstance().getDevice() == Device.TAP2PHONE) {
            sdkConfig.setCaAddress(new SDKConfig.Address(
                    T2PRemoteConfig.DEFAULT_IP,
                    T2PRemoteConfig.DEFAULT_PORT,
                    (Protocol.HTTP == T2PRemoteConfig.DEFAULT_PROTOCOL || Protocol.HTTP : Protocol.HTTPS), // Choosing the HTTP or HTTPS protocol for connecting Tap2Phone
                    (AddressType.IP == T2PRemoteConfig.DEFAULT_ADDRESS_TYPE || AddressType.IP : AddressType.DNS) // Selecting an IP or DNS address for Tap2Phone connection
            ));
        } else {
            sdkConfig.setCaAddress(new SDKConfig.Address(
                    BuildConfig.CA_URL,
                    BuildConfig.CA_PORT,
                    ("http".equals(BuildConfig.CA_PROTOCOL) ? Protocol.HTTP : Protocol.HTTPS),  // Choosing the HTTP or HTTPS protocol for connecting to the CA
                    ("ip".equals(BuildConfig.CA_TYPE) ? AddressType.IP : AddressType.DNS) // Selecting an IP or DNS address to connect to the CA
            ));
        }

        return sdkConfig;
    }

Main changes: passing the context to the SDKConfig constructor and replacing the T2PRemoteConfig class with T2PCARemoteConfig for TAP2Phone configuration.

private SDKConfig buildSdkConfig() {
    SDKConfig sdkConfig = new SDKConfig(this); // Context is passed
    sdkConfig.setRequestTimeout(2 * 60 * 1000);
    sdkConfig.setPackageName(getPackageName());
    sdkConfig.setAriaAddress(new SDKConfig.Address(
            BuildConfig.ARIA_URL,
            BuildConfig.ARIA_PORT,
            ("http".equals(BuildConfig.ARIA_PROTOCOL) ? Protocol.HTTP : Protocol.HTTPS), // Select HTTP or HTTPS protocol for connecting to ARIASOFT.HOST
            ("ip".equals(BuildConfig.ARIA_TYPE) ? AddressType.IP : AddressType.DNS) // Select IP or DNS address for connecting to ARIASOFT.HOST
    ));

    if (TerminalFactory.getInstance().getDevice() == Device.TAP2PHONE) {
        sdkConfig.setCaAddress(new SDKConfig.Address(
                T2PCARemoteConfig.DEFAULT_IP,
                T2PCARemoteConfig.DEFAULT_PORT,
                (Protocol.HTTP == T2PCARemoteConfig.DEFAULT_PROTOCOL ? Protocol.HTTP : Protocol.HTTPS), // Select HTTP or HTTPS protocol for connecting Tap2Phone
                (AddressType.IP == T2PCARemoteConfig.DEFAULT_ADDRESS_TYPE ? AddressType.IP : AddressType.DNS) // Select IP or DNS address for connecting Tap2Phone
        ));
    } else {
        sdkConfig.setCaAddress(new SDKConfig.Address(
                BuildConfig.CA_URL,
                BuildConfig.CA_PORT,
                ("http".equals(BuildConfig.CA_PROTOCOL) ? Protocol.HTTP : Protocol.HTTPS), // Select HTTP or HTTPS protocol for connecting to CA
                ("ip".equals(BuildConfig.CA_TYPE) ? AddressType.IP : AddressType.DNS) // Select IP or DNS address for connecting to CA
        ));
    }
    return sdkConfig;
}

Server, CA and host addresses

For the demo application, the demo addresses of the CA and ARIASOFT.HOST specified in the table below are used.

Other addresses are used for working with a specific product. To obtain them, please contact helpdesk@tactilion.com.

Purpose	Address:Port
Server ARIASOFT.HOST	DNS: aria-demo.nadeks.ru:10443 IP: 212.42.50.77:10443 For international integrations: 45.153.186.184:8181
Server CA	DNS: im1.ca1.nadeks.ru:7777 For international integrations: 45.153.186.184:7771

Code example:

sdkConfig.setAriaAddress(new SDKConfig.Address(
         "aria-demo.nadeks.ru"              // URL of the ARIASOFT.HOST server
         "10443 с SSL/7770 без SSL"           // ARIASOFT.HOST server port
        SDKConfig.Address.Protocol.HTTP || SDKConfig.Address.Protocol.HTTPS), // HTTP or HTTPS protocol
        SDKConfig.Address.AddressType.IP || SDKConfig.Address.AddressType.DNS)      // Type of IP or DNS address
));
sdkConfig.setCaAddress(new SDKConfig.Address(
        "im1.ca1.nadeks.ru"                // CA server URL
        "7777"                // CA Server Port
        SDKConfig.Address.Protocol.HTTP || SDKConfig.Address.Protocol.HTTPS), // HTTP or HTTPS protocol
         SDKConfig.Address.AddressType.IP || SDKConfig.Address.AddressType.DNS)      // Type of IP or DNS address
));

Initialization

Initialization of the SDK in your activity occurs by using the created configuration with the installation of client certificates and a private key:

try {
    AriaPaymentSDK.getInstance().init(getApplicationContext(), sdkConfig); // Initializing the SDK
    AriaPaymentSDK.getInstance().setClientCertificates(correctCertsPem);  // Installing client certificates
    AriaPaymentSDK.getInstance().setClientPrivateKey(correctPrivateKeyPem); // Setting up the client's private key
}

Initialization is now performed in the background, the result is returned via the InitCallback, and the context is no longer passed explicitly (it's already included in SDKConfig).

// Asynchronous initialization with callbacks
AriaPaymentSDK.getInstance().init(buildSdkConfig(), new InitCallback() {
    @Override
    public void onSuccess() {
        try {
            // Setting certificates and key INSIDE the callback
            AriaPaymentSDK.getInstance().setClientCertificates(correctCertsPem);
            AriaPaymentSDK.getInstance().setClientPrivateKey(correctPrivateKeyPem);

            // Additional actions for TAP2Phone
            if (device == Device.TAP2PHONE) {
                new Thread(() -> {
                    AriaPaymentSDK.getInstance().startLightOnboarding();
                    setInfoText("Success terminal init", true);
                }).start();
            } else {
                setInfoText("Success terminal init", true);
            }
        }

Exception Handling and Error Output

If an error occurs, it is handled and an error message is output:

catch (SDKException e) {
    setInfoText("SDKException.ERROR_CODE: " + e.getErrorCode().name());  // Handling exceptions and displaying an error message
    e.printStackTrace();

    return; // Termination of execution in case of an error
}

In the new version, error handlers have been separated:

SDK initialization errors → handled in onError()

Certificate/key setting errors → handled in catch (SDKException)

// For certificate setting errors:
catch (SDKException e) {
    setInfoText("SDKException.ERROR_CODE: " + e.getErrorCode().name(), true);
    e.printStackTrace();
}

// For SDK initialization errors:
@Override
public void onError(Throwable throwable) {
    TerminalFactory.getInstance().clearTerminal();
    setInfoText("Fail terminal init", true);
}

Table with error codes

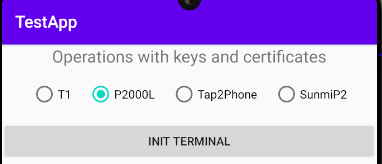

Initialization on a specific device

When initializing, you must specify a specific POS terminal for operation:

TerminalFactory.getInstance().initTerminal(device);

try {
    TerminalFactory.getInstance().initTerminal(device);
} catch (Exception e) {
    setInfoText("Fail terminal init", true);
    return;
}

List of available devices:

Device model	Vendor
P2000L	SmartPeak
T1	TopWise
TAP2PHONE	Not used as a POS terminal for payments
SUNMI_P2	Sunmi
i9100	Urovo

Method for running the application in the main thread

This method is designed to execute code in the main thread of the Android application to avoid multithreading issues and ensure smooth operation of the application.

// Method for executing code in the main thread
private void mainThread(Runnable runnable) {
    // Creates a new Handler associated with the main thread's main message loop
    new Handler(Looper.getMainLooper()).post(runnable);
}

In the new version, the mainThread() method has been completely removed from the code. Instead, the standard Android API runOnUiThread() is now used.

runOnUiThread(() -> setInfoText("Formatted SUCCESS", true));

runOnUiThread(() -> ((TextView) findViewById(R.id.response)).setText(text));

SDK Onboarding

This method is responsible for starting the onboarding process and handling the result (success or error) using the SDK in a separate thread.

private void startOnboarding() {
    // We set the information text informing about the beginning of the process
    setInfoText("Start onboarding. Please wait.", false);

    // Creating a new thread to perform the task of starting the onboarding process
    new Thread(() -> {
        // Starting the onboarding process using AriaPaymentSDK
        AriaPaymentSDK.getInstance().startOnboarding(MainActivity.this, new AriaPaymentSDK.OnboardingCallback() {

            @Override
            public void success() {
                // If the process was successful, we update the information text
                setInfoText("Success onboarding", true);
            }

            @Override
            public void error(Throwable throwable) {
                // If an error has occurred, we update the information text with the error code
                setInfoText("Error onboarding: " + ((SDKException) throwable).getErrorCode().name(), true);
            }
        });
    }).start(); // Launching the created stream
}

In the new version, the API has been simplified, and the SDK now manages the context independently.

private void startOnboarding() {
    setInfoText("Start onboarding. Please wait.", false);

    new Thread(() -> AriaPaymentSDK.getInstance().startOnboarding(new AriaPaymentSDK.OnboardingCallback() {
        @Override
        public void onSuccess() {
            setInfoText("Success onboarding", true);
        }

        @Override
        public void onError(Throwable throwable) {
            setInfoText("Error onboarding: " + ((SDKException) throwable).getErrorCode().name(), true);
        }
    })).start();
}

Full example:

        SDKConfig sdkConfig = buildSdkConfig();
        try {
            AriaPaymentSDK.getInstance().init(getApplicationContext(), sdkConfig, new InitCallback() {
                @Override
                public void wasInit() {
                    try {
                        AriaPaymentSDK.getInstance().setClientCertificates(correctCertsPem);
                        AriaPaymentSDK.getInstance().setClientPrivateKey(correctPrivateKeyPem);

                        if (device == Device.TAP2PHONE) {
                            new Thread(() -> {
                                AriaPaymentSDK.getInstance().startLightOnboarding(getApplicationContext());
                                setInfoText("Success terminal init", true);
                            }).start();
                        } else {
                            setInfoText("Success terminal init", true);
                        }
                    } catch (SDKException e) {
                        setInfoText("SDKException.ERROR_CODE: " + e.getErrorCode().name(), true);
                        e.printStackTrace();
                    }
                }

                @Override
                public void wasNotInit(Throwable throwable) {
                    TerminalFactory.getInstance().clearTerminal();
                    setInfoText("Fail terminal init", true);
                }
            });
        } catch (SDKException e) {
            setInfoText("SDKException.ERROR_CODE: " + e.getErrorCode().name(), true);
            e.printStackTrace();
        }

// In the initAriaPaymentSDK() method:
AriaPaymentSDK.getInstance().init(buildSdkConfig(), new InitCallback() {
    @Override
    public void onSuccess() {
        try {
            AriaPaymentSDK.getInstance().setClientCertificates(correctCertsPem);
            AriaPaymentSDK.getInstance().setClientPrivateKey(correctPrivateKeyPem);

            if (device == Device.TAP2PHONE) {
                new Thread(() -> {
                    AriaPaymentSDK.getInstance().startLightOnboarding();
                    setInfoText("Success terminal init", true);
                }).start();
            } else {
                setInfoText("Success terminal init", true);
            }
        } catch (SDKException e) {
            setInfoText("SDKException.ERROR_CODE: " + e.getErrorCode().name(), true);
            e.printStackTrace();
        }
    }

    @Override
    public void onError(Throwable throwable) {
        TerminalFactory.getInstance().clearTerminal();
        setInfoText("Fail terminal init", true);
    }
});

Finishing work with SDK

In case of finishing work with activity, it is necessary to close SDK, it happens as follows:

@Override
    protected void onDestroy(){
        super.onDestroy();
        AriaPaymentSDK.getInstance().close(); // Closing SDK when Activity is destroyed
    }

In the new version, the following changes have been made:

Safer termination of operation
Improved context handling
Proper call sequence

@Override
protected void onDestroy() {
    AriaPaymentSDK.getInstance().onDestroy(this);
    super.onDestroy();
}

Steps to follow (for self-testing when initializing the SDK)

Add the required permissions to AndroidManifest.xml.
Initialize the SDK in your activity.
Check and request missing permissions:
- Use the checkAndCollectDenyPermission method to check for the required permissions.
- Use the requestDenyPermissions method to request missing permissions.
Create and configure the SDKConfig configuration object:
- Set the request timeout.
- Set the app package name.
- Set the ARIASOFT.HOST and CA (Certificate Authority) server addresses with the appropriate protocols and address types.
Initialize the SDK and install client certificates and private key:
- Call the init method to initialize the SDK.
- Install client certificates using the setClientCertificates method.
- Set the client private key using the setClientPrivateKey method.
Error Handling:
- Handle SDKExceptions to determine if errors occurred during initialization and display an error message.

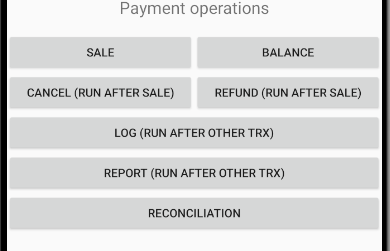

Main operations

These operations provide a full range of functionality for managing transactions, checking balances, reconciling totals, generating reports and receiving logs, which allows you to effectively use the SDK for various financial transactions in the POS system.

To launch the selected method, you need to pass the current Activity and requestCode to the start method, by which you can get a response to the request in onActivityResult.

        @Override
            protected void onActivityResult(int requestCode, int resultCode, @Nullable Intent data) {
                super.onActivityResult(requestCode, resultCode, data);
                Response response = AriaPaymentSDK.getInstance().parseResponse(data);
            }

@SuppressLint("SetTextI18n")
@Override
protected void onActivityResult(int requestCode, int resultCode, @Nullable Intent data) {
    super.onActivityResult(requestCode, resultCode, data);

    Response response = AriaPaymentSDK.getInstance().parseResponse(data);

    printResponse(response);
}

The onActivityResult method accepts the following three variables:

Name	Description	Format
requestCode	request code	string
resultCode	result code	string
data	returned data	string

Payment

The payment operation is used to perform a payment transaction where the amount and currency are specified.

```Java String token = UUID.randomUUID().toString().replace("-", ""); // Generates a unique token for the operation AriaPaymentSDK.getInstance().sale(amount, currency, token).start(activity, 100); // Starts the payment operation with the specified amount, currency, and token ```

The method operates with the following variables:

Name	Description	Format
amount	amount of the balance in the minimum allowable units	long
currency	currency	int
token	unique identifier of the operation	string

        amount = result;
        token = UUID.randomUUID().toString().replace("-", "");

        AriaPaymentSDK.getInstance().sale(
                amount.replaceAll("\\.", ""), // Форматирование суммы
                currency,
                token
        ).start(MainActivity.this, 100);

The method operates with the following variables:

Name	Description	Format
amount	amount of the balance in the minimum allowable units	long
currency	currency	int
token	unique identifier of the operation	string

amount = result;
trxNumber = UUID.randomUUID().toString().replace("-", "");

AriaPaymentSDK.getInstance().sale(
amount.replaceAll("\.", ""), // Форматирование суммы
currency,
trxNumber
).start(MainActivity.this, 100);

The method operates with the following variables:

Name	Description	Format
amount	amount of the balance in the minimum allowable units	long
currency	currency	int
trxNumber	unique identifier of the operation	string

The result of the operation will be the return value in onActivityResult under the specified requestCode as a Response of type SaleResponse.

Cancel

The cancel payment operation is used to cancel a payment transaction.

```Java String token = UUID.randomUUID().toString().replace("-", ""); // Generates a unique token for the operation AriaPaymentSDK.getInstance().cancel(amount, currency, lastTrxNumber, token).start(activity, 100); // Starts the cancel payment operation with the specified amount, currency, transaction number and token ```

The method operates with the following variables:

Name	Description	Format
amount	balance amount in minimum acceptable units	long
currency	currency	int
token	unique transaction identifier	string
lastTrxNumber	last transaction number string	string

token = UUID.randomUUID().toString().replace("-", "");
AriaPaymentSDK.getInstance().cancel(
        amount.replaceAll("\\.", ""), // Форматирование суммы
currency,
lastTrxNumber,
token
).start(MainActivity.this, 100);

The method operates with the following variables:

Name	Description	Format
amount	balance amount in minimum acceptable units	long
currency	currency	int
token	unique transaction identifier	string
lastTrxNumber	last transaction number string	string

trxNumber = UUID.randomUUID().toString().replace("-", "");
AriaPaymentSDK.getInstance().cancel(
        amount.replaceAll("\.", ""), // Форматирование суммы
        currency,
        invoiceNumber,
        trxNumber
).start(MainActivity.this, 100);

The method operates with the following variables:

Name	Description	Format
amount	amount of the balance in the minimum allowable units	long
currency	currency	int
trxNumber	unique identifier of the operation	string
invoiceNumber	receipt number	string

The result of the operation will be the return value in onActivityResult under the specified requestCode as a Response of type VoidResponse.

Refund

The refund operation is used to return a previously paid amount to the client.

String token = UUID.randomUUID().toString().replace("-", ""); // Generates a unique token for the operation
AriaPaymentSDK.getInstance().refund(amount, currency, lastTrxNumber, token).start(activity, 100); // Starts the refund operation with the specified amount, currency, transaction number and token
});

The method operates with the following variables:

Name	Description	Format
amount	balance amount in minimum acceptable units	long
currency	currency	int
token	unique transaction identifier	string
lastTrxNumber	last transaction number	string

token = UUID.randomUUID().toString().replace("-", "");
AriaPaymentSDK.getInstance().refund(
        amount.replaceAll("\\.", ""), // Форматирование суммы
currency,
lastTrxNumber,
token
).start(MainActivity.this, 100);

The method operates with the following variables:

Name	Description	Format
amount	balance amount in minimum acceptable units	long
currency	currency	int
token	unique transaction identifier	string
lastTrxNumber	last transaction number	string

trxNumber = UUID.randomUUID().toString().replace("-", "");
AriaPaymentSDK.getInstance().refund(
        amount.replaceAll("\.", ""), // Форматирование суммы
currency,
serverTrxId,
trxNumber
).start(MainActivity.this, 100);

The method operates with the following variables:

Name	Description	Format
amount	amount of the balance in the minimum allowable units	long
currency	currency	int
trxNumber	unique identifier of the operation	string
serverTrxId	RRN, unique identifiers on the bank host side	string

The result of the operation will be the return value in onActivityResult under the specified requestCode as a Response of the RefundResponse type.

Balance

The balance check operation is used to get the current balance.

setInfoText("Start balance operation. Please wait."); // Sets the information text about the start of the balance check operation
String token = UUID.randomUUID().toString().replace("-", ""); // Generates a unique token for the operation
            AriaPaymentSDK.getInstance().balance(currency, token).start(activity, 100); // Starts the balance check operation with the specified currency and token

The method operates with the following variables:

Name	Description	Format
currency	currency	int
token	unique transaction identifier	string

setInfoText("Start balance operation. Please wait.", false);
token = UUID.randomUUID().toString().replace("-", "");
AriaPaymentSDK.getInstance().balance(currency, token).start(MainActivity.this, 100);

The method operates with the following variables:

Name	Description	Format
currency	currency	int
token	unique transaction identifier	string

trxNumber = UUID.randomUUID().toString().replace("-", "");
AriaPaymentSDK.getInstance().balance(currency, trxNumber).start(MainActivity.this, 100);

The method operates with the following variables:

Name	Description	Format
currency	currency	int
trxNumber	unique transaction identifier	string

The result of the operation will be the return value in onActivityResult under the specified requestCode as a Response of the BalanceResponse type.

Reconciliation of totals

The reconciliation operation is used to reconcile transactions.

setInfoText("Start reconciliation operation. Please wait."); // Sets the text of the information about the start of the reconciliation operation
String token = UUID.randomUUID().toString().replace("-", ""); // Generates a unique token for the operation
            AriaPaymentSDK.getInstance().reconciliation(token).start(activity, 100); // Starts the reconciliation operation with the specified token

The method operates with the following variables:

Name	Description	Format
token	unique transaction identifier	string

setInfoText("Start reconciliation operation. Please wait.", false);
token = UUID.randomUUID().toString().replace("-", "");
AriaPaymentSDK.getInstance().reconciliation(token).start(MainActivity.this, 100);

The method operates with the following variables:

Name	Description	Format
token	unique transaction identifier	string

trxNumber = UUID.randomUUID().toString().replace("-", "");
AriaPaymentSDK.getInstance().reconciliation(trxNumber).start(MainActivity.this, 100);

The method operates with the following variables:

Name	Description	Format
trxNumber	unique transaction identifier	string

The result of the operation will be the return value in onActivityResult under the specified requestCode as a Response of type ReconciliationResponse.

Report

The report operation is used to generate a transaction report for a certain period or according to certain criteria.

            setInfoText("Start report operation. Please wait."); // Sets the text of the information about the beginning of the report receipt operation
            AriaPaymentSDK.getInstance().report(null, 3).start(activity, 100); // Starts the operation of getting a report with the specified parameters

setInfoText("Start report operation. Please wait.", false);
AriaPaymentSDK.getInstance().report(null, 3).start(MainActivity.this, 100);

The result of the operation will be the return value in onActivityResult under the specified requestCode as a Response of the ReportResponse type.

Response Logs

The log operation is used to get response logs from the SDK for debugging and analysis.

            setInfoText("Start log operation. Please wait."); // Sets the information text about the start of the log operation
            AriaPaymentSDK.getInstance().log(token).start(activity, 100); // Starts the log operation with the specified token

The method operates with the following variables:

Name	Description	Format
token	unique transaction identifier	string

setInfoText("Start log operation. Please wait.", false);
AriaPaymentSDK.getInstance().log(lastTrxNumber).start(MainActivity.this, 100);

The method operates with the following variables:

Name	Description	Format
lastTrxNumber	last transaction number	string

The result of the operation will be the return value in onActivityResult under the specified requestCode as a Response of type LogResponse.

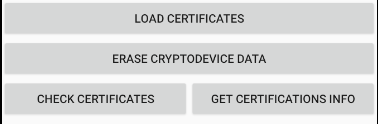

Additional Operations

Additional Operations are a series of service procedures that must be implemented and made available in a special "service section" or in the "administrative menu" of the Technical Software (TS).

Checking certificates

This function initializes the button that checks if the certificates are uploaded.

boolean success = AriaPaymentSDK.getInstance().checkOnboarding(YOUR_ACTIVITY); // Checks if the certificates need to be uploaded
            String message = success ? "No need to upload the certificates" : "You need to download the certificates"

            setInfoText(message); // Displays a message about the verification result

actionOnClick(() -> {
    setInfoText("Start certificates checking. Please wait.", false);
    boolean success = AriaPaymentSDK.getInstance().checkOnboarding();
    String message = success ?
        "No need to upload the certificates" :
        "You need to download the certificates";
    setInfoText(message, true);
});

The checkOnboarding() method no longer requires passing the activity context
An intermediate notification about the start of the operation has been added
The entire operation is performed in a background thread via actionOnClick()

Download Certificates

This function initializes a button that downloads certificates through the onboarding flow.

            AriaPaymentSDK.getInstance().startOnboarding(YOUR_ACTIVITY, new AriaPaymentSDK.OnboardingCallback() { // Starts the onboarding process with the specified context and callback
                @Override
                public void success() {
                    runOnUiThread(() -> setInfoText("Success onboarding")); // Updates the information text field when onboarding is successful
                }

                @Override
                public void error(Throwable throwable) {
                    runOnUiThread(() -> setInfoText("Error onboarding: " + ((SDKException) throwable).getErrorCode().name())); // Updates the information text field when an error occurs during the onboarding process, displaying the error code
                }
            });

findViewById(R.id.load_certs).setOnClickListener(view -> {
    actionOnClick(() -> {
        if (TerminalFactory.getInstance().getDevice() == Device.TAP2PHONE) {
            showVsnDialog();
        } else {
            startOnboarding();
        }
    });
});

private void startOnboarding() {
    setInfoText("Start onboarding. Please wait.", false);

    new Thread(() -> AriaPaymentSDK.getInstance().startOnboarding(new AriaPaymentSDK.OnboardingCallback() {
        @Override
        public void onSuccess() {
            setInfoText("Success onboarding", true);
        }

        @Override
        public void onError(Throwable throwable) {
            setInfoText("Error onboarding: " + ((SDKException) throwable).getErrorCode().name(), true);
        }
    })).start();
}

Key differences from version 1.0.29.111:

Aspect	Version 1.0.29.111	Version 1.0.37.0+
Method parameters	Required an Activity	No parameters
Execution thread	UI thread	Background thread
Device handling	Unified approach	Different logic for Tap2Phone
VSN validation	No validation	Mandatory for Tap2Phone

Getting information about certificates

The function of getting information about certificates is implemented by initializing a button that, when pressed, collects information about certificates and displays it as text.

            // Getting information about certificates via SDK
            CertificateChain[] certificateChains = AriaPaymentSDK.getInstance().getCertificateInfo(activity.getApplicationContext());

            // Create a StringBuilder object to build a string of certificate information
            StringBuilder certificatesInfo = new StringBuilder();
            for (CertificateChain certificateChain : certificateChains) { // Iterates through each certificate chain and adds information about it to the StringBuilder
                certificatesInfo.append(certificateChain.getType().name()).append(": ").append("\n");
                if (certificateChain.getChain() == null || certificateChain.getChain().isEmpty()) {
                    certificatesInfo.append("--- NULL\n");
                    continue;
                }

                for (CertificateInfo certificate : certificateChain.getChain()) {
                    certificatesInfo
                            .append("--- ")
                            .append(certificate.getType()).append("; ")
                            .append(certificate.getStatus()).append("; ")
                            .append(certificate.getExpirationDate()).append(";")
                            .append("\n");
                }
            };

            CertificateChain[] certificateChains = AriaPaymentSDK.getInstance().getCertificateInfo();
            StringBuilder certificatesInfo = new StringBuilder();
            for (CertificateChain certificateChain : certificateChains) {
                // Add certificate chain type
                certificatesInfo.append(certificateChain.getType().name())
                                .append(": ")
                                .append("\n");
                // Check for certificates in the chain
                if (certificateChain.getChain() == null || certificateChain.getChain().isEmpty()) {
                    certificatesInfo.append("--- NULL\n");
                    continue;
                }
                for (CertificateInfo certificate : certificateChain.getChain()) {
                    certificatesInfo.append("--- ")
                                   .append(certificate.getType()).append("; ")
                                   .append(certificate.getStatus()).append("; ")
                                   .append(certificate.getExpirationDate()).append(";")
                                   .append("\n");
                }
            }

            setInfoText(certificatesInfo.toString(), false);
        });
    });
}

Key differences from version 1.0.29.111:

No dependency on context
Simplified call without parameters
Unified output information format
More detailed information about each certificate

Clear Data

This function initializes a button that starts the data clearing process.

            AriaPaymentSDK.getInstance().format(getApplicationContext(), new AriaPaymentSDK.FormatingCallback() { // Starts the data cleaning (formatting) process with the specified context and callback
                @Override // If successful, the method displays a corresponding message
                public void success() {
                    runOnUiThread(() -> setInfoText("Formatted SUCCESS"));
                }

                @Override // In case of an error, the method displays a corresponding message
                public void failure() {
                    runOnUiThread(() -> setInfoText("Formatted FAILED"));
                }
            });

private void initFormatButton() {
    findViewById(R.id.format).setOnClickListener(view -> {
        actionOnClick(() -> {
            // Notification about the process start
            setInfoText("Start formatting. Please wait.", false);

            // API call for formatting
            AriaPaymentSDK.getInstance().format(new AriaPaymentSDK.FormatingCallback() {
                @Override
                public void onSuccess() {
                    // Handle successful completion
                    runOnUiThread(() -> setInfoText("Formatted SUCCESS", true));
                }

                @Override
                public void onError() {
                    // Handle error
                    runOnUiThread(() -> setInfoText("Formatted FAILED", true));
                }
            });
        });
    });
}

Key differences:

Simplified API call
Standardized callbacks
Improved UX
Thread safety

Terminal Selection (or T2P)

This function initializes the device selection button handlers.

        findViewById(R.id.p2000l).setOnClickListener(view -> device = Device.P2000L); // Listener to the P2000L terminal selection button
        findViewById(R.id.t1).setOnClickListener(view -> device = Device.T1);  // Listener to the T1 terminal selection button
        findViewById(R.id.emulator).setOnClickListener(view -> device = Device.EMULATOR); // Listener to the emulator selection button
        findViewById(R.id.tap_2_phone).setOnClickListener(view -> device = Device.TAP2PHONE); // Listener on the Tap2Phone selection button
        findViewById(R.id.sunmi_p2).setOnClickListener(view -> device = Device.SUNMI_P2); // Listener to the selection button of the Sunmi P2 terminal

        findViewById(R.id.init_terminal).setOnClickListener(view -> {
            setInfoText("Start terminal init. Please wait.", false);
            TerminalFactory.getInstance().initTerminal(device); // Initializes the terminal with the device selected earlier

            ArrayList<String> denyPermissions = checkAndCollectDenyPermission( // checks and collects a list of denied permissions for the SDK
                    AriaPaymentSDK.getInstance().getPermissions()
            );
            requestDenyPermissions(denyPermissions); // asks the user for the permissions that were collected in the previous step
        });
    }

private void initTerminalButtons() {
    Spinner deviceSpinner = findViewById(R.id.device_spinner);

    // Dynamically creating a list of devices from the enum
    String[] deviceNames = Arrays.stream(Device.values())
            .map(Device::name)
            .toArray(String[]::new);

    // Setting up the adapter for the Spinner
    ArrayAdapter<String> adapter = new ArrayAdapter<>(this,
            android.R.layout.simple_spinner_item,
            deviceNames);
    adapter.setDropDownViewResource(android.R.layout.simple_spinner_dropdown_item);
    deviceSpinner.setAdapter(adapter);

    // Restoring previous selection
    int selectedPosition = Arrays.asList(deviceNames).indexOf(device.name());
    if (selectedPosition != -1) {
        deviceSpinner.setSelection(selectedPosition);
    }

    // Device selection handler
    deviceSpinner.setOnItemSelectedListener(new AdapterView.OnItemSelectedListener() {
        @Override public void onNothingSelected(AdapterView<?> parent) {}

        @Override
        public void onItemSelected(AdapterView<?> adapterView, View view, int position, long id) {
            device = Device.values()[position];
        }
    });

    // Initialize terminal
    findViewById(R.id.init_terminal).setOnClickListener(view -> {
        setInfoText("Start terminal init. Please wait.", false);

        try {
            TerminalFactory.getInstance().initTerminal(device);
        } catch (Exception e) {
            setInfoText("Fail terminal init", true);
            return;
        }

        ArrayList<String> denyPermissions = checkAndCollectDenyPermission(
                AriaPaymentSDK.getInstance().getPermissions()
        );
        requestDenyPermissions(denyPermissions);
    });
}

Features of the new implementation:

Dynamic device list (New devices automatically appear in the list without code changes)
Improved state management
Enhanced error handling (Prevents further actions on initialization error, more informative response)
Permission automation (System automatically requests necessary permissions)

Response Options

The printResponse method processes the different types of responses (Response) and updates the user interface with information about the operation performed.

    // Checking the response type: SaleResponse
    if (response instanceof SaleResponse) {
        operationName = "Sale";  // Setting the operation name
        check = ((SaleResponse) response).getPrintData();  // Getting data for printing
        lastTrxNumber = ((SaleResponse) response).getUniqTrxNumber();  // Saving a unique transaction number
    }
    // Checking the response type: BalanceResponse
    else if (response instanceof BalanceResponse) {
        operationName = "Balance";  // Setting the operation name
        check = ((BalanceResponse) response).getPrintData();  // Getting data for printing
    }
    // Checking the response type: VoidResponse
    else if (response instanceof VoidResponse) {
        operationName = "Void";  // Set the operation name
        check = ((VoidResponse) response).getPrintData();  // Getting data for printing
    }
    // Checking the response type: RefundResponse
    else if (response instanceof RefundResponse) {
        operationName = "Refund";  // Set the operation name
        check = ((RefundResponse) response).getPrintData();  // Getting data for printing
    }
    // Checking the response type: ReconciliationResponse
    else if (response instanceof ReconciliationResponse) {
        operationName = "Reconciliation";  // Set the operation name
        check = ((ReconciliationResponse) response).getPrintData();  // Getting data for printing
    }
    // Checking the response type: LogResponse
    else if (response instanceof LogResponse) {
        operationName = "Log";  // Set the operation name
        check = ((LogResponse) response).getPrintData();  // Getting data for printing
    }
    // Checking the response type: ReportResponse
    else if (response instanceof ReportResponse) {
        operationName = "Report";  // Set the operation name
        check = ((ReportResponse) response).getPrintData();  // Getting data for printing
    }
}

@SuppressLint("SetTextI18n")
private void printResponse(Response response) {
    String operationName = null;
    String check = null;

    // Handling different response types
    if (response instanceof SaleResponse) {
        operationName = "Sale";
        check = ((SaleResponse) response).getPrintData();
        lastTrxNumber = ((SaleResponse) response).getUniqTrxNumber();
    } else if (response instanceof BalanceResponse) {
        operationName = "Balance";
        check = ((BalanceResponse) response).getPrintData();
    } else if (response instanceof VoidResponse) {
        operationName = "Void";
        check = ((VoidResponse) response).getPrintData();
    } else if (response instanceof RefundResponse) {
        operationName = "Refund";
        check = ((RefundResponse) response).getPrintData();
    } else if (response instanceof ReconciliationResponse) {
        operationName = "Reconciliation";
        check = ((ReconciliationResponse) response).getPrintData();
    } else if (response instanceof LogResponse) {
        operationName = "Log";
        check = ((LogResponse) response).getPrintData();
    } else if (response instanceof ReportResponse) {
        operationName = "Report";
        check = ((ReportResponse) response).getPrintData();
    }

    // Handling null response
    if (response == null) {
        setInfoText("Operation: null", true);
        return;
    }

    // Forming main operation information
    setInfoText(
            "Operation: " + operationName + "; " +
            "Success: " + (response.isSuccess() ? "True" : "False") + "; " +
            "ErrorReason: " + response.getErrorReason().name(),
            false
    );

    // Displaying print data (receipt)
    ((TextView) findViewById(R.id.check_response)).setText(check);
}

Main improvements in the new implementation:

Extended operation information (Added operation success status, displays error reason if present)
Separate receipt output (in a dedicated TextView)
Protection against NullPointerException
Optimized transaction number saving (Saved only for sale operations and used for subsequent operations such as "void", "refund")

Result processing

Each response is an inheritor of the Response class, which has two fields to determine whether the requested transaction was successfully completed.

Name	Description	Format
success	Value (0 or 1) on (failure or success)	int
errorReason	Error code meaning	int

Error codes

BalanceResponse

To provide a balance response in a POS-system, the BalanceResponse class is used. It contains fields for the amount, currency, operation code, response code, transaction status, print data, and date/time on the external device.

Name	Description	Format
amount	balance amount (in minimum acceptable units)	long
currency	currency	int
operationCode	operation	int
respCode	processing response code	string
trxStatus	status by processing response code	string
printData	data for printing	string
extDeviceDateTime	date and time on external device	string

LogResponse

The logResponse class is used to store response data in the POS system. The class contains the following fields:

Name	Description	Format
uniqTrxNumber	unique transaction number	string
amount	transaction amount (in minimum acceptable units)	long
currency	currency code	int
hostDateTime	date and time on the server	string
readType	reading type	int
pan	PAN (Primary Account Number)	string
authCode	authorization code	string
refNumber	reference number	string
respCode	processing response code	string
trxStatus	status by processing response code	string
extDeviceDateTime	date and time on external device	string
extDeviceId	external device identifier	string
merchantId	seller id	string
printData	data for printing	string
serverTrxId	RRN, unique identifiers on the bank host side	string
acquiringBank	name of acquirer bank	string
invoiceNumber	receipt number	string

ReconciliationResponse

The ReconciliationResponse class is designed to work with response data for reconciliation operations in the POS system. The class methods manage information about transactions, their status, device and seller data.

The ReconciliationResponse class contains the following fields:

Name	Description	Format
operationCode	operation code	int
respCode	processing response code	string
trxStatus	status by processing response code	string
printData	data for printing	string
merchantId	merchant ID	string
extDeviceId	external device ID	string
uniqTrxNumber	unique transaction number	string
extDeviceDateTime	external device date and time	string

RefundResponse

The RefundResponse class is used for data with responses to return transactions in the POS system.

The RefundResponse class contains the following fields:

Name	Description	Format
amount	refund amount (in minimum allowed units)	long
currency	currency code	int
hostDateTime	date and time on server	string
readType	reading type	int
pan	PAN number (Primary Account Number)	string
authCode	authorization code	string
refNumber	reference number	string
operationCode	operation code	int
operationCode	transaction code	int
respCode	processing response code	string
trxStatus	processing response code status	string
printData	printable data	string
merchantId	merchant identifier	string
extDeviceId	external device identifier	string
uniqTrxNumber	unique transaction number	string
extDeviceDateTime	date and time on external device	string
origTrxNumber	unique transaction number from the external device side	string
serverTrxId	RRN, unique identifiers on the bank host side	string
acquiringBank	name of acquirer bank	string
invoiceNumber	receipt number	string

ReportResponse

The ReportResponse class is used to store response data related to POS reporting operations.

The class contains the following fields:

Name	Description	Format
commandMode	report option	int
printData	print data	string
uniqTrxNumber	unique transaction code	string
trxStatus	status by processing response code	string

SaleResponse

The SaleResponse class is used to store response data related to payment and sales transactions in the POS system.

Name	Description	Format
uniqTrxNumber	unique transaction number	string
amount	transaction amount (in minimum allowed units)	long
currency	currency code	int
hostDateTime	date and time on the server	string
readType	read type	int
pan	PAN (Primary Account Number)	string
authCode	authorization code	string
refNumber	reference number	string
respCode	processing response code	string
trxStatus	status by processing response code	string
extDeviceDateTime	date and time on external device	string
extDeviceId	external device identifier	string
merchantId	seller identifier	string
printData	printable data	string
serverTrxId	RRN, unique identifiers on the bank host side	string
acquiringBank	name of acquirer bank	string
invoiceNumber	receipt number	string

VoidResponse

The VoidResponse class is used to store response data related to payment cancellation in the POS system.

The VoidResponse class contains the following fields:

Name	Description	Format
amount	refund amount (in minimum allowed units)	long
currency	currency code	int
operationCode	transaction code	int
respCode	processing response code	string
trxStatus	processing response code status	string
printData	printable data	string
merchantId	merchant identifier	string
extDeviceId	external device identifier	string
uniqTrxNumber	unique transaction number	string
extDeviceDateTime	date and time on external device	string
serverTrxId	RRN, unique identifiers on the bank host side	string
acquiringBank	name of acquirer bank	string
invoiceNumber	receipt number	string

Test application

How to work with the example

The test application has all the necessary functionality for testing, specifically:

Initialization of a specific terminal model
Download, check and get information about existing certificates
And also a button to clear data from the device. (Erase Cryptodevice Data)
Payment transactions

More information about payment transactions is provided in this section.

Video demonstration

Video demonstration of the main functions of the test application:

Error codes

The ErrorReason enumeration is used to represent various error reasons that may occur during the operation of the POS system. Each error reason has a corresponding integer value.

Error type	Error code	Description
CANCELLED_BY_USER_OR_USER_TIMEOUT	0	the operation was cancelled by the user or timed out
REFUSED_BY_HOST	1	the operation was rejected by the host (server)
REFUSED_BY_TERMINAL	2	the operation was rejected by the terminal
NO_ERROR	3	no errors
OTHER_ERROR	4	other error

Feedback

f you have any problems or questions about the SDK/test application, please contact us by email helpdesk@tactilion.com.

Last modified: 23 December 2025
